IP67 Industrial Rugged PC - Waterproof Computers and Networking Devices

Compact Embedded Computers with IP67 Ingress Protection

Mid-Atlantic Rugged Systems brings you industrial rugged computers and networking devices that withstand

submersion up to 1 meter. These ip67 industrial computer networking products are also rated for extended operating temperatures, making them ideal for applications requiring high-performance, in industries such as:

​

Industrial Automation  |  Smart Factories  |  Logging & Mining  | Energy Management
Surveillance  |  Transportation & Rolling Stock

​

Rain (1).jpg

Industrial Networking Devices with Ingress Protection IP67

Rugged IP67 Industrial Computer Networking Products


Mid-Atlantic Rugged Systems offers the following industrial networking devices with IP67 ingress protection, ideal for applications requiring high-performance at submersion up to 1 meter:​

IP67 Rugged Embedded Systems  |  IP67 Unmanaged Ethernet Switches

EN50155 Full Gigabit Ethernet Switches  |  IP68 Outdoor Industrial AP/Bridge/Clients  |  IP67 Rated PoE + Ethernet Extenders

IP67 Lite-Managed Ethernet Switches  |  IP67 Managed Gigabit PoE Ethernet Switches  |  IP67 Rugged Tablets

IP67 3G & 4G LTE Cellular Routers  | IP67 Industrial Wireless Access Points

IP67 Long Distance WiFi MESH AP/Routers  |  IP67 Outdoor Smart City Boxes  |  IP65 MIL-STD Fanless Rugged Systems

IP65 Rugged Industrial Displays  |  IP69K Rugged Fanless Panel PCs  |  IP67 Industrial-Grade 3D Vision Camera

​

IP67 Rugged Embedded Systems
Vecow Distributor - Mid-Atlantic Rugged Systems

IP67 Rugged Embedded Systems

​

Vecow RES-1000 and RES-3000 Series

IP67 Rugged Embedded Systems with Intel® Core™ i7/i5/i3 U-series Processor

​

Top Features:

  • Compact, slim design

  • IP67 ingress protection

  • Fanless for enhanced protection and reliability

  • Wide-temperature operation, from -30°C to 70°C

  • DDR4 2400MHz memory

  • 8th Generation Intel® Core™ i7/i5/i3 U-series SoC (Whiskey Lake)

  • 9V to 48V DC Power input with M12 waterproof connector

  • Dual X-coded M12 GigE LAN, iAMT 12.0 supported

  • Intel® UHD Graphics 620

  • 2 M12 COM RS-232/422/485, 1 M12 for 2-port USB

  • Optional supports TPM 2.0

  • Customized manufacturing services available

View the RES-3000 Specifications
IP67 Unmanaged Ethernet Switches
Moxa Distributor - Mid-Atlantic Rugged Systems

IP67 Unmanaged Ethernet Switches

​

Moxa TN-5305 Series

EN 50155 5-port IP67 unmanaged Ethernet switches

​

Top Features:

  • ​10/100BaseT(X), 4-pin M12 (D-coded), F/H duplex mode, and auto MDI/MDIX connection

  • IP67-rated housing protection

  • Power input: 12 to 45 VDC, 18 to 30 VAC

  • Complies with all EN 50155 mandatory test items1

  • -40 to 75°C operating temperature range (-T models)

​

​

IP67 Full Gigabit Ethernet Switches
Moxa Networking Products - Mid-Atlantic Rugged Systems

IP67 Full Gigabit Ethernet Switches

​

Moxa TN-G6500 Series

EN 50155 Full Gigabit Ethernet switches with up to 8 PoE ports

​

Top Features:

  • 12 Gigabit ports with push-pull M12 connectors

  • Isolated power with 24 to 110 VDC power supply range

  • Complies with all EN 50155 mandatory test items1

  • -40 to 70°C operating temperature range

  • IP67-rated housing protection

  • Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and RSTP/STP for network redundancy

  • 8 IEEE 802.3at/af compliant PoE and Ethernet combo ports

  • Provides up to 30 W per PoE port​

IP68 Outdoor Industrial AP/Bridge/Client
Moxa Products from Mid-Atlantic Rugged Systems

IP68 Outdoor Industrial AP/Bridge/Client

​

Moxa AWK-4131A Series

Outdoor industrial IEEE 802.11a/b/g/n wireless AP/bridge/client

​

Top Features:

  • 2x2 MIMO 802.11a/b/g/n AP/bridge/client

  • Millisecond-level Client-based Turbo Roaming1

  • Easy setup and deployment with AeroMag

  • Wireless redundancy with AeroLink Protection

  • Easy network setup with Network Address Translation (NAT)

  • Rugged industrial design with integrated antenna and power isolation

  • IP68-rated weatherproof housing designed for outdoor applications and -40 to 75°C wide operating temperature range

  • Avoid wireless congestion with 5 GHz DFS channel support

IP67 PoE + Ethernet Extender
Patton VoIP and Ethernet Technologies

IP67 PoE + Ethernet Extender

​

Patton CopperLink CL1101E67

CopperLink CL1101E67 IP67 Rated/NEMA 4X Industrial Grade Power-over-Ethernet (PoE) Ethernet Extender

​

Top Features:

  • Ethernet Extension—Extends 10/100Base-TX Ethernet over 3,300 feet (1005 meters) using 2-wire, 24-AWG twisted-pair, Cat 3, Cat 5e/6/7, or coaxial cable

  • Delivers PoE—PowerPlus technology powers up both the remote CopperLink extender and the PoE enabled device connected to it. No power is required at the remote location

  • Transparent LAN Bridging—Will pass higher layer industrial Ethernet protocols such as BACnetIP, EtherCAT and Modbus TCP

  • Modems need no configuration to operate, Ethernet ports are auto-sensing 10/100, full or half-duplex

  • Overvoltage protection on Line and Ethernet ports prevents damage from ESD (electrostatic discharge), CDE (cable discharge events), and lightning

  • IP67 enclosure for complete protection from hazardous weather elements

  • Made in the USA

IP67 Lite-Managed Ethernet Switch
ORing Networking Products
ORing IES-2050-M12 Lite-Managed Ethernet

IP67 Lite-Managed Ethernet Switch

​

ORing IES-2050-M12

Industrial 5-port lite-managed Ethernet switch with 5x10/100Base-T(X), M12 connector, IP-67 grade

​

Top Features:

  •  Fastest Redundant Ethernet Ring : O-Ring (recovery time < 10ms over 250 units of connection)

  • Open-Ring support the other vendor's ring technology in open architecture

  • O-Chain support the multiple redundant ring technology

  • Waterproof M12 connector (A-coding)

  • Multiple Redundant Ethernet technology RSTP/STP, O-Ring supported to protect your industrial network

  • SNMP v1/v2c/v3 support for secured network management

  • Configurable by Web-based and Windows utility (Open-Vision)

  • Supports 5 ports 10/100Base-T(X)

  • Environmentally sealed by IP-67 grade protection and ultrarugged enclosure for toughest industrial usages

  • Event notification through Syslog, Email, and SNMP trap

  • DIN-Rail and wall mounting enabled

  • Support LLDP Protocol

IP67 Managed Gigabit PoE Ethernet Switch
ORing Industrial Products

IP67 Managed Gigabit PoE Ethernet Switch

​

ORing TGPS-W9442GF-MM-M12X-QS-MV-IP67

EN 50155 10-port managed Gigabit PoE Ethernet switch, IP-67 grade

​

Top Features:

  • EN50155-compliant Ethernet switch for rolling stock application

  • 2 Gigabit fiber ports with embedded Q-ODC interface

  • O-Chain allow multiple redundant network rings

  • IEEE 802.3at compliant PoE and total power budget is 60 Watts with maximum 30Watts per port

  • PoE scheduled configuration and PoE auto-ping check function

  • IEEE 802.3az Energy-Efficient Ethernet technology
    Provided HTTPS/SSH protocol to enhance network security

  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic

  • Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration

  • Wall mounting enabled

  • IP-67 housing design

IP67 3G & 4G LTE Cellular Routers
ORing IoT Products
ORing Cellular Router.png

IP67 3G & 4G LTE Cellular Routers

​

ORing TGAR-W1061 Series

Industrial EN50155 IEEE 802.11 a/b/g/n Cellular Routers with PoE P.D., IP-67 grade

​

Top Features:

  • High Speed Air Connectivity: WLAN interface support up to
    300Mbps link speed

  • 1 port 10/100/1000Base-T(X) port with PoE P.D.

  • 4G LTE Modem dial up included

  • HNAT enhance LAN to WAN routing performance

  • High Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/
    WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported

  • Secure Management by HTTPs

  • WAN Connection Types supported: Dynamic/Static
    IP, PPPoE, Modem/Dial Up

  • IP table to prevent access from unauthorized IP address

  • Support VPN for secured network connection (Open VPN , PPTP, IPSEC, VPN)

  • Rigid IP-67 waterproof housing design

IP67 Industrial Wireless Access Points
ORing Wireless Access Points
ORing Wireless Access Point.png

IP67 Industrial Wireless Access Points

​

ORing IGAP-W612H+_US

Industrial outdoor wireless access points with PoE P.D., IP-67 grade

​

Top Features:

  • High-Speed Air Connectivity: Dual Band in IEEE 802.11 a/b/g/n and b/g/n WLAN interfaceselectable and support up to 300Mbps link speed

  • High Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/
    WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported

  • High data throughput with HT40 2x2 MIMO

  • High transmission power (27 dBm Max.)

  • Supports X-Roaming < 100 ms

  • Supports AP/Client/Repeater Mode

  • Supports MAC Filtering

  • Wireless connecting status monitoring

  • HTTPs protocol supported for secured management

  • Event Warning by Syslog, Email, SNMP Trap

  • Rigid IP-67 housing design

  • Pole-mount enabled

IP67 Long Distance WiFi MESH AP/Router
WoMaster IIoT Embedded Systems
WoMaster Outdoor MESH.png

IP67 Long Distance WiFi MESH AP/Router

​

WoMaster WA512GM-IP67

Outdoor Long Distance Dual Band 2.4G+5GHz WiFi MESH AP/Router

​

Top Features:

  • Quad-Core ARM Processor

  • IEEE 802.11ac Wave 2, compatible with 802.11a/b/g/n

  • Concurrent dual-band 2.4 G+5GHz radio, up to 866Mbps + 300Mbps Bandwidth

  • Dual Gigabit Ethernet ports in Router mode for WLAN/LAN to Eth-WAN routing

  • Dual 2.4G+5GHz Radio in One Antenna

  • Support Amazon AWS & Microsoft Azure cloud service

  • Support Private IoT cloud and proprietary ThingsMaster cloud service

  • Interactive monitoring dashboard and map shows
    the status, signal strength*, location etc

  • Outdoor IP67 Production Design

  • Effective heat dissipation design for operating in -40~70oC environments

  • Power Input 802.3af PD by Industrial PoE switch as a complete wire/wireless solution

IP67 Outdoor Smart City Box
WoMaster Smart City Surveillance
WoMaster SCB400.png

IP67 Outdoor Smart City Box

​

WoMaster SCB400

Smart City and Industrial Internet of Thing (IIoT) applications integrated in one IP67 metal enclosure

​

Top Features:

  • IP67 Metal Housing with Effective heat dissipation design for operating in -40~70oC environments

  • Complete PoE management including per-port Power Budget Control, PoE Scheduling and PoE Status

  • mPCIe & SIM socket for wireless expansion

  • Up to 60W power budget by AC110V or DC48V power

  • OpenVPN, IPSec, L2TP, GRE for secure connection

  • One RJ-45 GbE WAN port and two PoE+ ports

IP65 MIL-STD Fanless Rugged System
7StarLake Logo.png
SR700 Joint Battle Command Platform.png

IP65 MIL-STD Fanless Rugged System

​

7STARLAKE SR700

MIL-STD 810 Fanless Rugged System with Intel® Core™ i7-4700EQ Haswell Processor, IP65 protection

​

Top Features:

  • MIL-STD810G Thermal, shock, Vibration, humidity/EMI/EMC conditions

  • Chassis with M12 connectors

  • 4th Gen Intel® Core™ i7 processor

  • DDR3L XR-DIMM up to 8GB

  • Onboard uSSD SATAIII up to 64 GB

IP69K Rugged Fanless Panel PC
iEi Rugged Panel PCs
iEi IP69K Rugged Fanless Panel PC.png

IP69K Rugged Fanless Panel PC

​

iEi INOX-F15C-ULT3

IP69K high pressure, high temperature protection 15’’ fanless panel PC

​

Top Features:

  • 15’’ fanless panel PC with Intel® Skylake ULT processor

  • IP69K high pressure, high temperature protection

  • SUS304 stainless steel housing

  • Operating temperature : -20°C ~ 50°C

  • Flat glass PCAP touch with 6H hardness, resistive touch window

  • Accessible HDD Bay

  • M12 connections

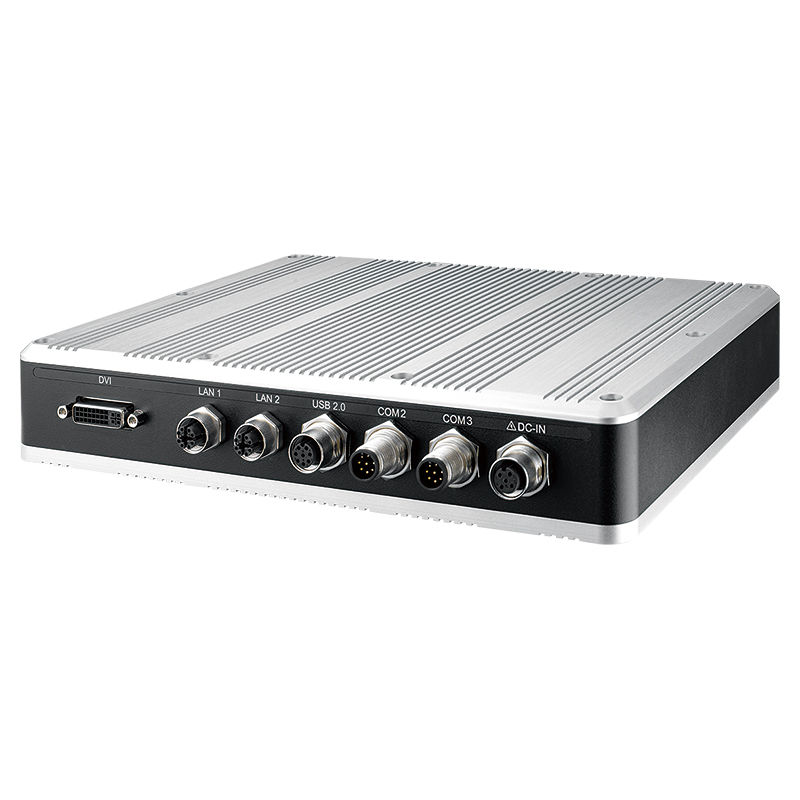

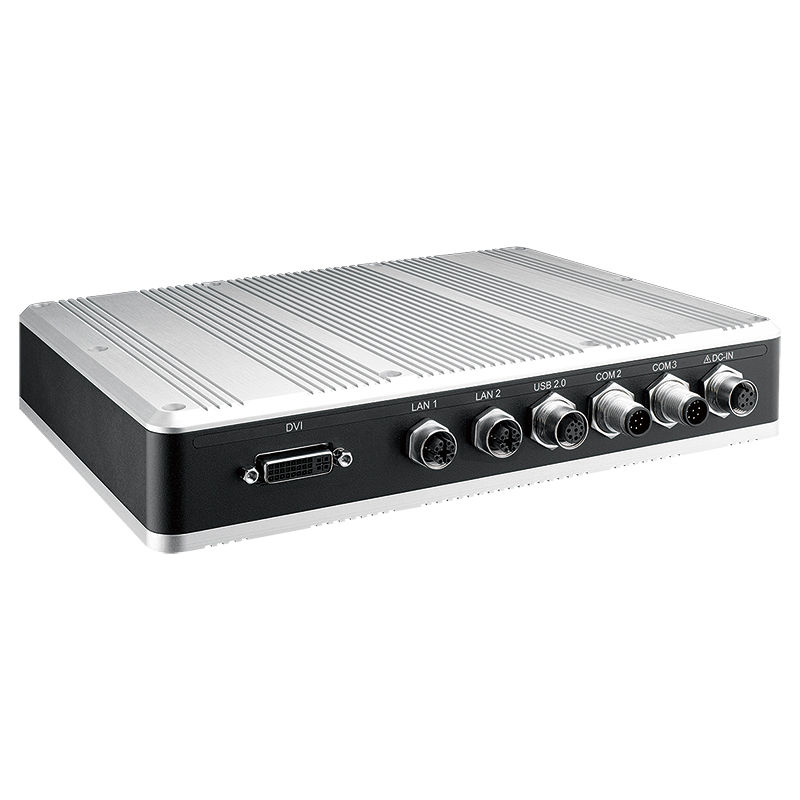

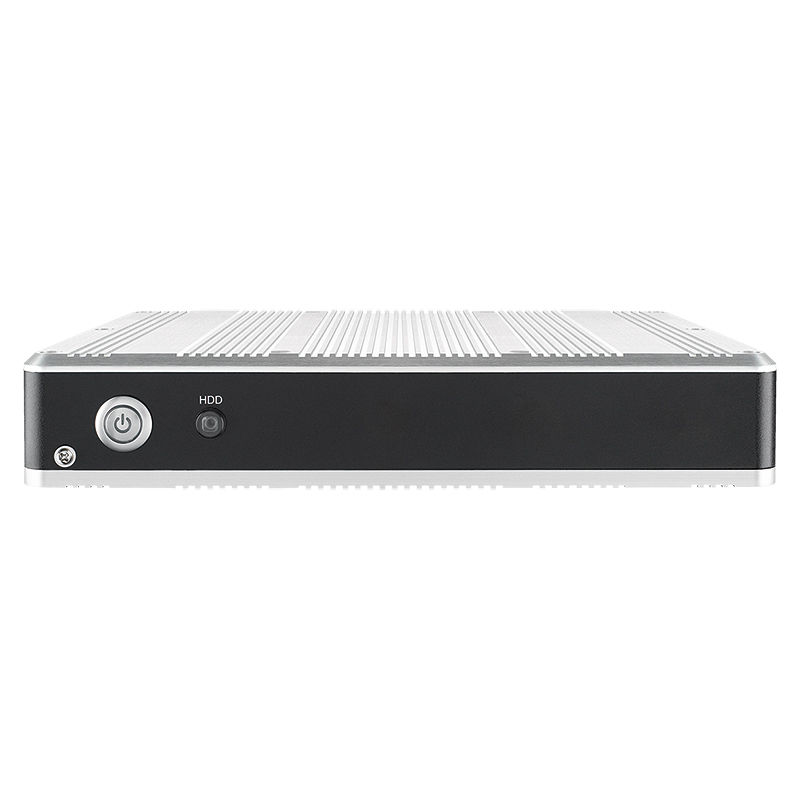

Vecow RES-3000 Series Rugged Slim Embedded System
Vecow RES-3000 Series Rugged Slim Embedded System
Vecow RES-3000 PC Specifications
System

  • Processor: Intel® Core™ i7/i5/i3/Celeron® U-series Processor (Whiskey Lake)

  • Chipset: Intel® SoC (Cannon Lake)

  • BIOS: AMI

  • SIO: IT8786E

  • Memory: 1 DDR4 2400MHz SO-DIMM, up to 32GB

  • OS: Windows 10, Linux


I/O Interface

  • Serial: 2 COM RS-232/422/485, A-coded M12 Connector

  • USB: 1 supports 2-port USB 2.0, A-coded M12 Connector

  • LED: Power, HDD


Graphics

  • Processor: Intel® HD Graphics 620

  • Interface: IP67 Waterproof DVI-D Connector, up to 1920 x 1200 @60Hz


Storage

  • SATA: 1 SATA III (6Gbps)

  • mSATA: 1 SATA III (Mini PCIe Type, 6Gbps)

  • Storage Device:

    • 1 mSATA Socket

    • 1 Internal 2.5" SSD/HDD Bracket (Optional)


Ethernet

  • LAN 1: Intel® I219LM GigE LAN supports iAMT 11.0, X-coded M12 Connector

  • LAN 2: Intel® I210 GigE LAN, X-coded M12 Connector


Power

  • Power Input: 9V to 48V, DC-in

  • Power Interface: A-coded M12 Connector

  • Power Switch: IP67 Waterproof Power Button


Other

  • TPM: Optional Infineon SLB9665 supports TPM 2.0

  • Watchdog Timer: Reset  :  1 to 255 sec./min. per step

  • Smart Management: Wake on LAN, PXE supported

  • HW Monitor: Monitoring temperature, voltages. Auto throttling control when CPU overheats.


Mechanical

  • Dimension (W x L x H): 250mm x 180mm x 44mm (9.8" x 7.1" x 1.7")

  • Weight: 2.3 kg (5.07 lb)

  • Mounting:

    • Wallmount by mounting bracket

    • VESA Mount


Environment

  • Operating Temperature: -30°C to 70°C (-22°F to 158°F)

  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)

  • Humidity: 5% to 95% Humidity, non-condensing

  • Relative Humidity: 95% @ 70°C

  • Shock:

    • IEC 60068-2-27

    • SSD : 50G @ wallmount, Half-sine, 11ms

  • Vibration:

    • IEC 60068-2-64

    • SSD : 5Grms, 5Hz to 500Hz, 3 Axis

  • EMC: CE, FCC, EN50155, EN50121-3-2

​

bottom of page
